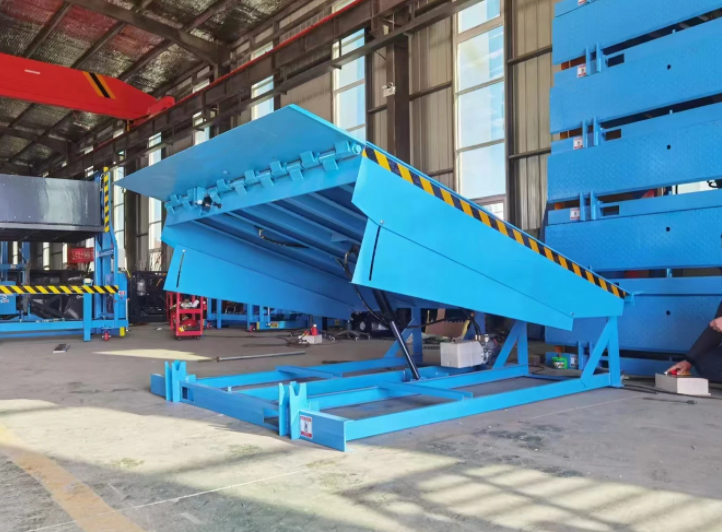

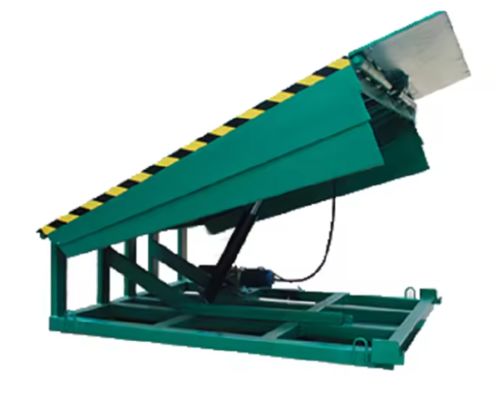

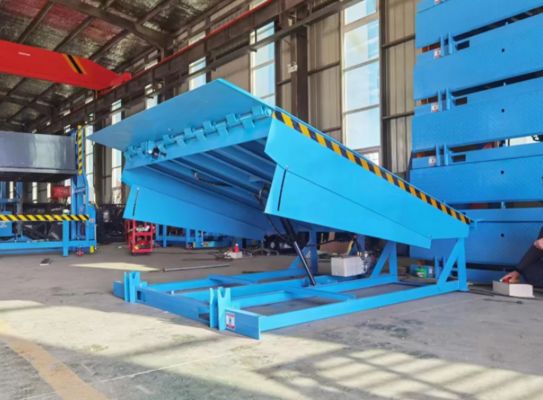

Workshop Automatic Bestseller 6Ton Container Loading Unloading Dock Ramp Hydraulic Platform Loading Dock Leveler

Workshop Automatic Bestseller 6Ton Container Loading Unloading Dock Ramp Hydraulic Platform Loading Dock Leveler

Product Description:

Dock levelers are designed to accommodate truck and trailer beds that arrive at the facility with heights that are different than the dock height of the facility. The dock leveler deck assembly pivots and rests at an angle to accommodate the variance in the truck or trailer bed height. In doing this dock leveler accommodates truck and trailer beds that are both above and below the loading dock floor height.
It is important to manage the extent of this compensation for the difference to a reasonable and desirable level. Factors that determine reasonable and desirable levels include but are not limited to the following:

*The length of the dock leveler deck assembly. The longer the dock leveler deck assembly is the better it will be for accommodating dimensional differences in the truck / trailer bed heights relative to the load dock height. For example, all other conditions being equal, an 8ft long dock leveler deck assembly accommodates a greater height differences than 6ft long dock leveler deck assembly. The longer deck assembly simply reduces the angle of incline that the loading / unloading equipment (IE fork lift or pump truck) have to drive up and down as they go in and out of the truck / trailer.

*The type of loading / unloading equipment being used at the loading dock. For example a gas powered fork lift truck will generally have more power and larger wheels to accommodate larger angles of incline than an electrically powered pallet truck or a manually pushed pallet truck or cart.

*For obvious reasons, larger inclines create more wear and tear on equipment that is powered driven and has brakes.

*Larger inclines can result impact loads applied to the dock leveler as the fork lift hits the inclined dock leveler assembly and this can overload the leveler and result in damage to the dock leveler.

*Large inclines can create safety concerns due to possible run away loads. This is particularly true for manually propelled pump trucks or carts. As well, large inclines can make it onerous to push the same equipment up the inclines.

*Consideration of these factors should be made at the time the loading dock is designed.

*These factors should also be considered whenever changes to the factors listed above change at the loading dock.

Technical Parameters:

Stump-out from Mechanical Fallsafe:

It is common for mechanical or air actuated dock levelers to be supplied with mechanical fall safe legs. When the dock leveler is above floor level the fall safe legs are intended to stop a loaded dock leveler from going below level in the event that the dock leveler becomes unsupported during the loading / unloading operations. While somewhat addressing the intended concern, the fall safe legs can create other concerns that occur much more frequently than the unsupported dock leveler condition that the mechanical fall safe legs are intended to address.

Packing and Shipping:

Product Packaging and Shipping for Loading Dock Leveler

FAQ:

Q1: What is your MOQ?
A: No min order for dock leveler.

Q2: Can you do the full set products according to my project drawing?
A: Yes, our engineer will check your project drawings to make sure its accuracy for each different fittings and quantity.

Q3: What kinds of payment you accept?
A: We usually accept T/T, L/C, Western Union, etc. If you prefer other payments terms, please feel free to discuss with us.

Q4: We want to be your agent of our area. How to apply for this?
A: Please send your idea and your profile to any e-mails of us. Let's cooperate.

Q5: Do you produce other products?
A: Yes, besides Loading Unloading Platforms, we also produce PVC Rapid Door,Lifting Door, Cold Storage Insulation Roller Shutter Door, Fast Gate, Inflatable Dock Shelter.
